DHT11 – Humidity and Temperature Sensor
Harga Rp. 30.000 (harap kontak untuk cek ketersediaan produk)
harga diluar ongkir
Isi Paket
1 DHT11 Humidity and Temperature Sensor
Specification:

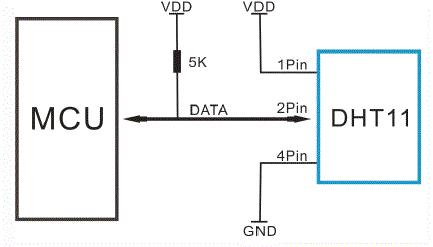

Temperature and humidity measurements are a nice addition to many hobby projects. The four-pin device uses a 1-wire protocol. [Rajendra] discusses the ins and outs of the communications, demonstrating the part using a PIC 16F628. It’s a snap to connect to your project, requiring VCC, GND, and a pull-up resistor on the single data line. We’ve already seen it used on at least one project, and hope to see more of this little guy in your own hacks.
Documentation
DHT Library Arduino
harga diluar ongkir
Isi Paket
1 DHT11 Humidity and Temperature Sensor
Specification:
- Dimension 28mm*12mm*10mm
- Main chip DHT11 huminity sensor
- Voltage: DC 5V
- Digital output
- Humidity Range: 20—90%RH
- Humidity accuracy: ±5%RH
- Temperature range: 0—60℃
- Temperature accuracy: ±2℃
Temperature and humidity measurements are a nice addition to many hobby projects. The four-pin device uses a 1-wire protocol. [Rajendra] discusses the ins and outs of the communications, demonstrating the part using a PIC 16F628. It’s a snap to connect to your project, requiring VCC, GND, and a pull-up resistor on the single data line. We’ve already seen it used on at least one project, and hope to see more of this little guy in your own hacks.
Documentation
DHT Library Arduino
